1970-S Doubled Die Obverse WDDO-001

Description

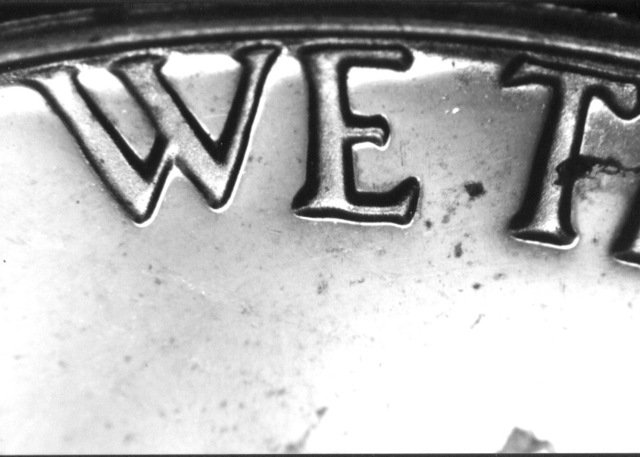

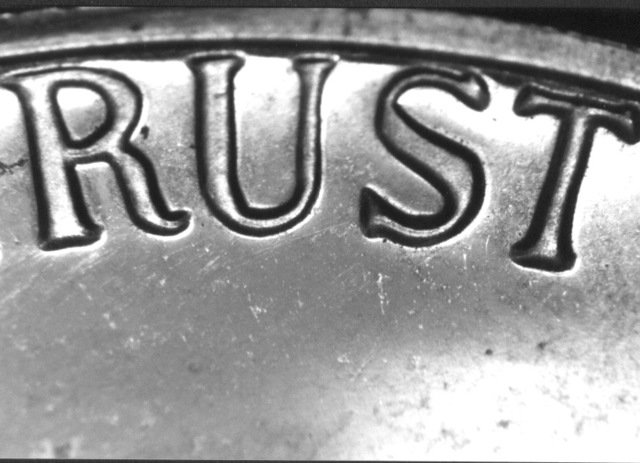

WDDO-001 on the 1970-S Proof Jefferson Nickel is a dual-class variety classified as both Class II (Distorted Hub Doubling) and Class V (Pivoted Hub Doubling) simultaneously — two distinct doubling mechanisms active in the same hub impression event. Struck with polished dies at the San Francisco Mint. A nice spread toward the center shows on IN GOD WE TRUST, increasing from left to right across the motto. A slight counterclockwise spread shows on IN GOD, the bottom of the coat, and the designer's initials — elements that rotate counterclockwise from a pivot point located at approximately 1 o'clock on the obverse. Die markers confirm attribution: on the obverse, a slanted die gouge appears between the bottom back of the coat and the queue; a short vertical die scratch is present on the back of the neck. On the reverse, a die gouge appears to the upper left of the first U of PLURIBUS, with two additional die gouges above. The CCW rotational component from the 1 o'clock pivot distinguishes this variety's Class V element from the Class II center spread. Cross-reference: Wexler WDDO-001, 1970-S Proof Jefferson Nickel.

Die Markers

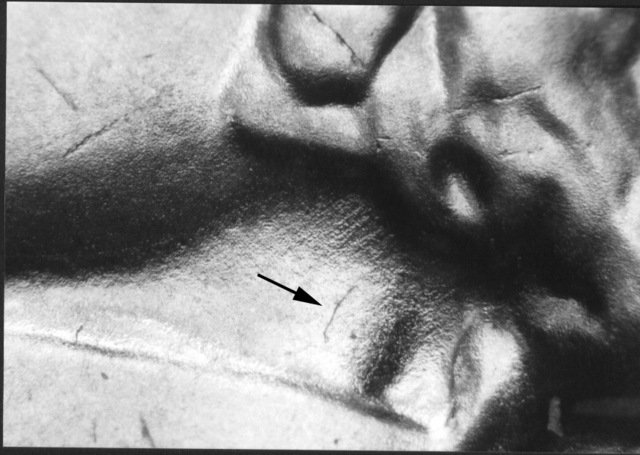

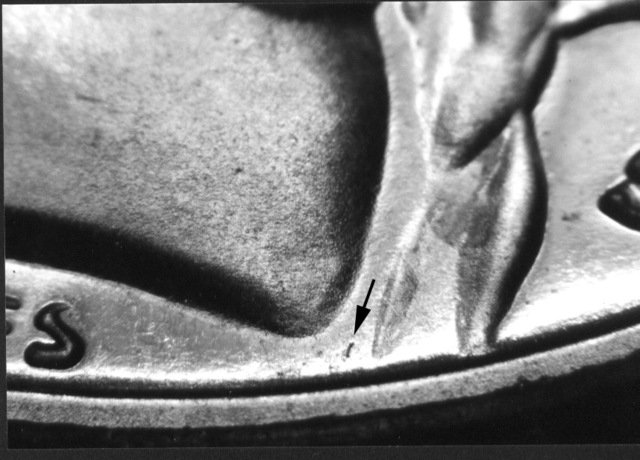

• Obverse: Slightly slanted die gouge between bottom back of coat and queue; short vertical die scratch on back of neck.

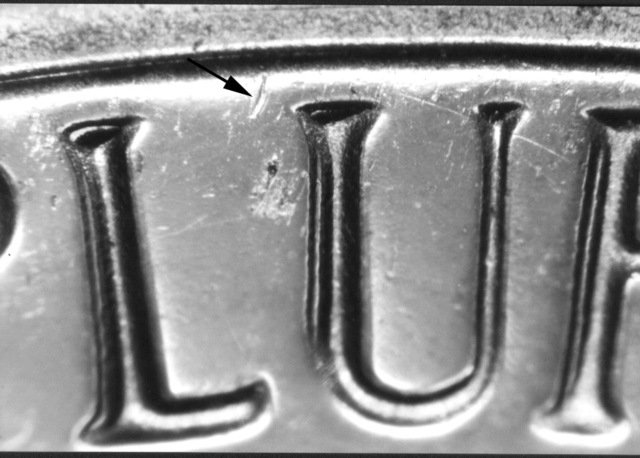

• Reverse: Die gouge to upper left of first U of PLURIBUS; two die gouges to upper left of E of E PLURIBUS.
