1977-D Atypical Die Clash ADC-10C-1977D-01

Description

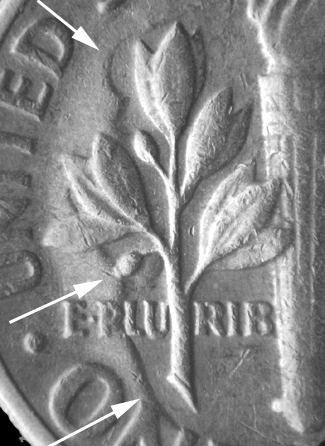

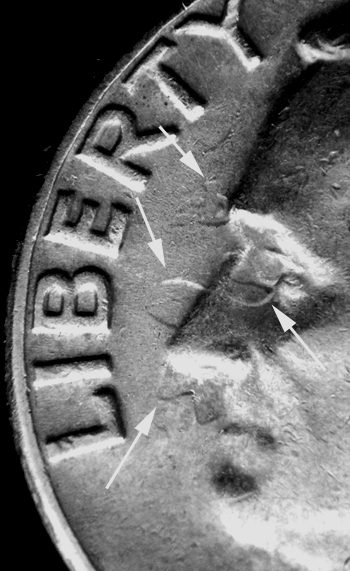

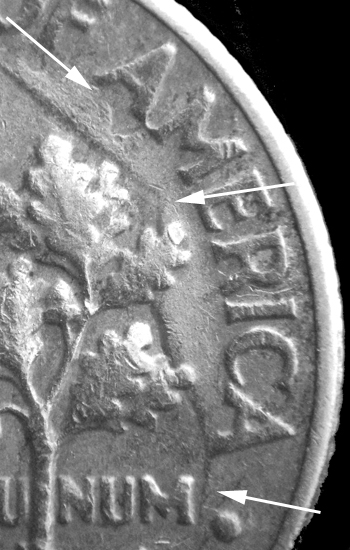

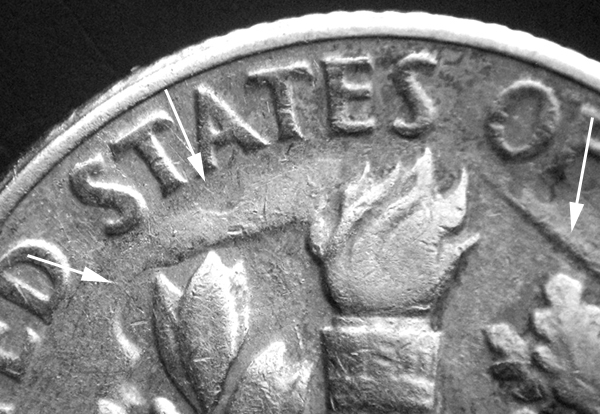

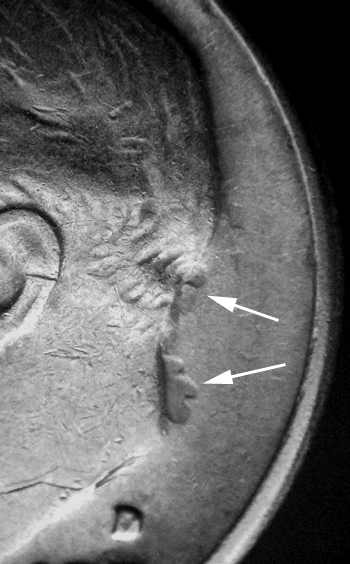

Described as a rather strong, unabraded obverse and reverse die clash, ADC-10C-1977D-01 on the 1977 Denver Mint Roosevelt Dime belongs to the specialized category of atypical die clashes — clash events that produce design transfer patterns inconsistent with the normal alignment of the die pair. Standard die clashes occur when the obverse and reverse dies strike each other without a planchet between them, transferring mirror-image impressions of each die's design onto the opposing die face. An atypical clash, however, involves unusual circumstances such as a tilted or rotated die, a partial planchet obstruction, or contact with a foreign object, producing clash marks that cannot be explained by simple head-on die-to-die contact. The "unabraded" notation indicates that the clash marks were not subsequently polished or filed away by Mint technicians — a significant detail because many clashes are partially or fully removed during routine die maintenance, making unabraded examples more visually dramatic. MadDieClashes catalogs this variety, and the "rather strong" characterization suggests the clash force was substantial enough to produce clearly visible design transfer on both obverse and reverse. The 1977-D Roosevelt Dime was struck at the Denver Mint on copper-nickel clad planchets during the modern clad era, when high-speed production occasionally generated clash events that went undetected long enough to produce coins before the die was serviced. Atypical die clashes are considerably rarer than standard clashes and represent one of the more intellectually interesting error categories because each specimen requires analysis to reconstruct the specific event that produced the anomalous pattern.
