1964-D Doubled Die Reverse DDR-005

Description

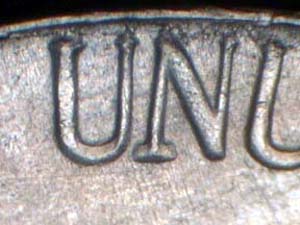

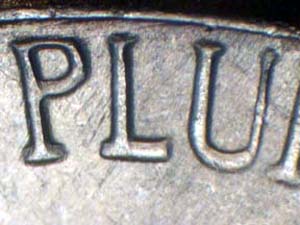

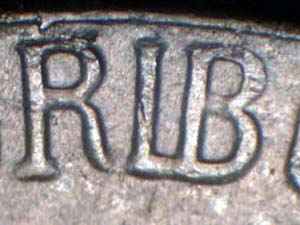

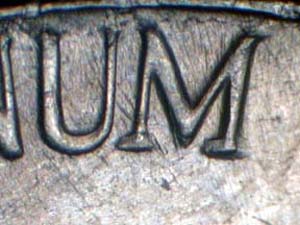

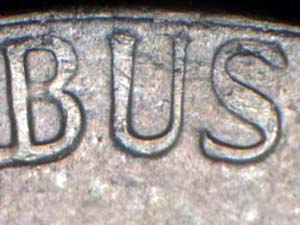

Closely related to DDR-004 in its affected element range, DDR-005 on the 1964-D Jefferson nickel also shows medium spread and extra thickness on E PLURIBUS UNUM, UNITED STATES OF AMERICA, FIVE CENTS, the M and last O of MONTICELLO, and both building edges. The identical element coverage but different die markers — UVC-1302 and DMR-013 versus DDR-004's UVC-1301 and DMR-012 — confirms these are products of separate hub doubling events on different working dies, each independently receiving a misaligned secondary hub impression during die production. Denver's unprecedented 1964 nickel output of approximately 1.79 billion pieces consumed an extraordinary number of working dies, dramatically increasing the probability of multiple dies independently acquiring hub doubling defects during manufacture. Felix Schlag's Monticello reverse bears the full weight of both varieties' diagnostic zones, with the building edges providing the cleanest geometric references for detecting the dual spread-and-thickness character of the doubling. The sequential UVC numbers (1301 and 1302) and DMR numbers (012 and 013) suggest these dies were cataloged consecutively, possibly reflecting discovery during the same examination session or systematic die census work. DDR-005 holds the fifth position in what appears to be a substantial reverse doubled die census for this record-mintage date, where the sheer volume of die production created proportionally more opportunities for hub alignment errors. Collectors distinguishing between DDR-004 and DDR-005 should focus on die-specific markers beyond the doubled die characteristics, as the affected element overlap requires secondary diagnostics for accurate attribution.

Die Markers

• UVC-1302; DMR-013
